Memory Information
	RAM Speed SIMM type On Board RAM Number of SIMM Slots Supported sizes in MB Maximum RAM Virtual Memory On Board VRAM Number of VRAM slots Cache SIMM slot Cache SIMM size	80ns 72 pin 8MB 2 4, 8, 16, 32 72MB 1GB none none Yes 256K, 512K

Notes

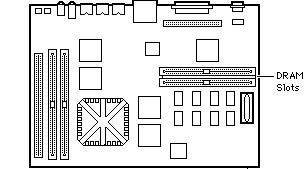

The Workgroup Server 6150 is functionally equivalent to the Power Macintosh 6100 with regards to expandability. The Power Macintosh 6100 operates in 32 bit mode only and cannot be toggled back to 24 bit mode. SIMMs must be installed in pairs of the same size. Failure to do so will result in the Power Macintosh thinking that both SIMMs are of the higher density. System crashes are possible in this situation. Possible RAM configurations are 8, 16, 24, 40 and 72 MB.

VRAM Information

The Power Macintosh 6100/60 uses DRAM based video which will support up to 16 bit video on 14-inch monitors, and 8 bit video on 16-inch monitors when connected to the HD-45 video port. DRAM based video is not expandable. Utilizing the HDI-45 connector on the back of the 6100, the following video modes are available: Monitor Resolution Color Depth, bits ------- ----------- ----------------- 12-inch RGB 512 X 384 16 13 or 14-inch RGB 640 X 480 16 15-inch Portrait 640 X 870 8 16-inch RGB 832 X 624 8 VGA 640 X 480 8 Utilizing the AV Video Card for Power Macintosh 6100/60, 7100/66, 8100/80, the following video modes are available: Graphics --- Mixed --- Monitor Resolution Only Graphics Video ------- ---------- ---- -------- ----- 12-inch RGB 512 X 384 24 24 16 12-inch Mono 640 X 480 8 8 8 13 or 14-inch RGB 640 X 480 24 16 16 VGA 640 X 480 24 16 16 15-inch Portrait 640 X 870 8 8 8 16-inch RGB 832 X 624 24 16 16 19-inch RGB 1024 X 768 16 8 8 21-inch RGB 1152 X 870 16 8 8 SuperVGA 800 X 600 24 16 16 NTSC 512 X 384 24 16 16 NTSC 640 X 480 24 16 16 NTSC flicker-free 640 X 480 16 n.a.* n.a.* PAL 768 X 576 24 16 16 PAL flicker-free 768 X 576 16 n.a.* n.a.* * NTSC and PAL monitors cannot display video when set to flicker-free format.
